Seam sealing & waterproofing
Every stitched seam is a hole in a waterproof shell. Taping closes them, panel by panel, so the garment performs as one surface.
How it works

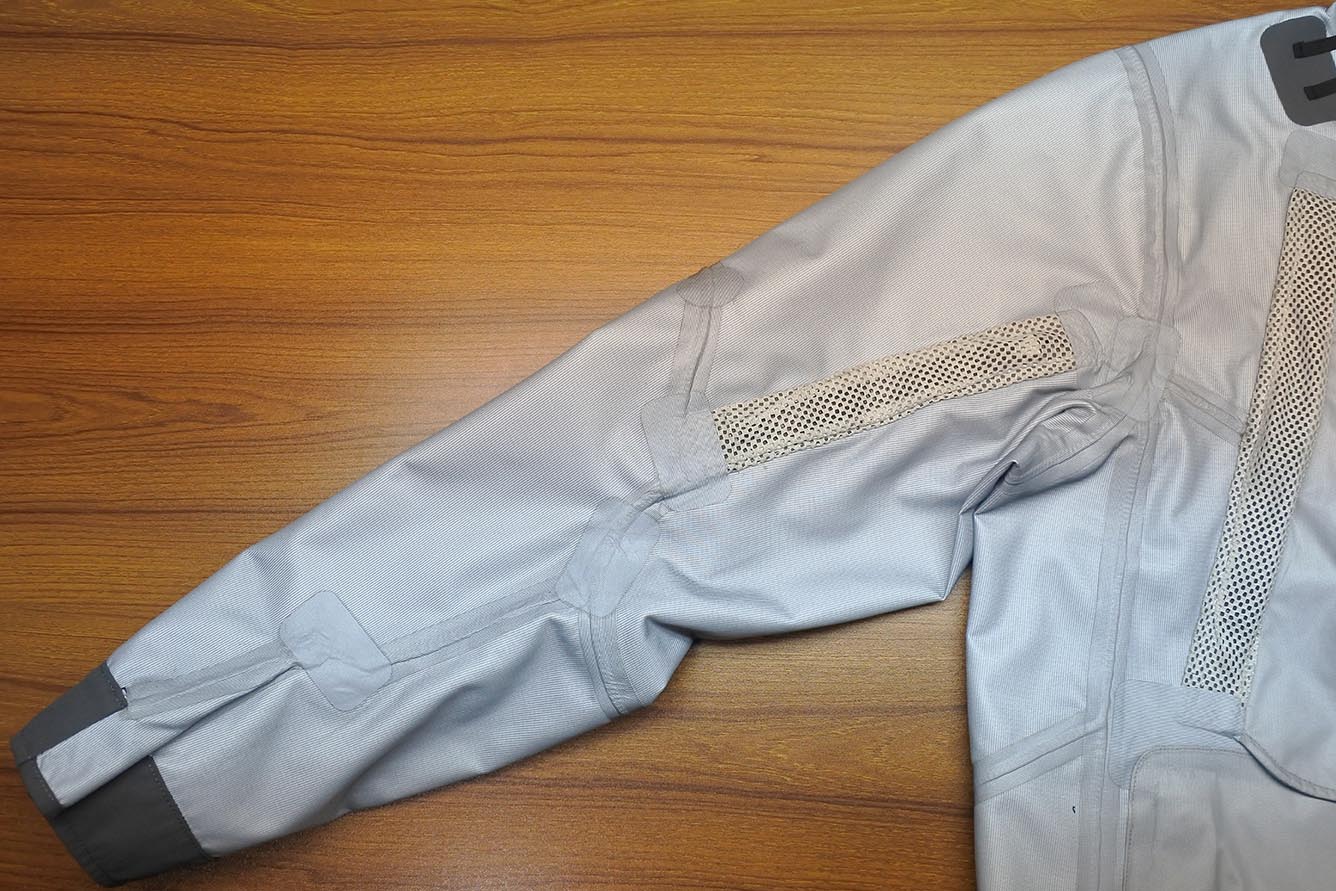

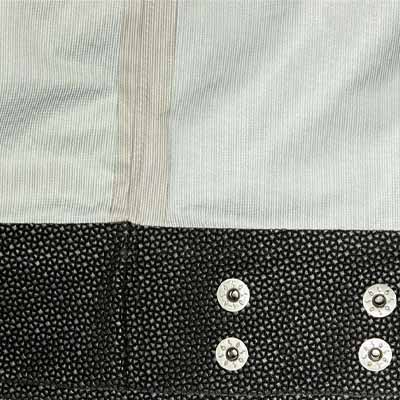

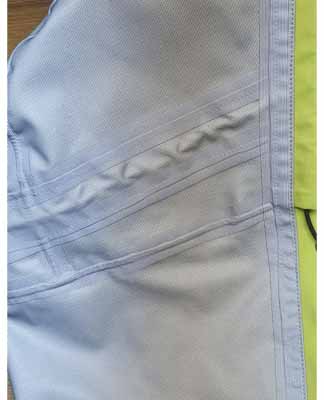

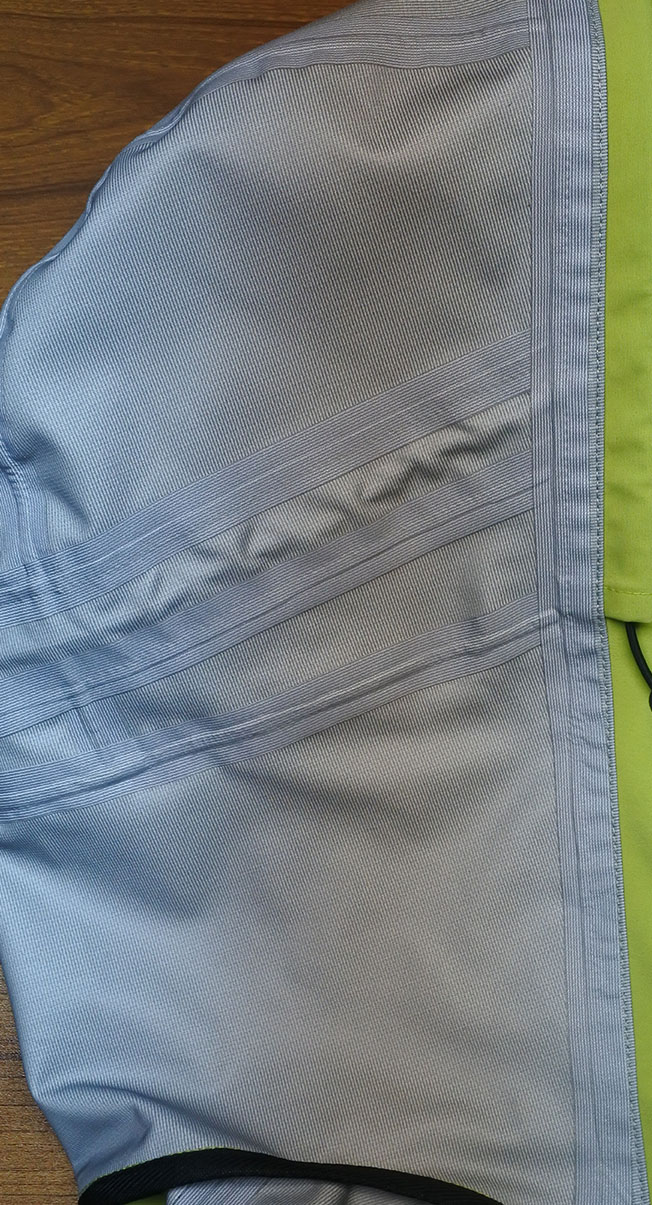

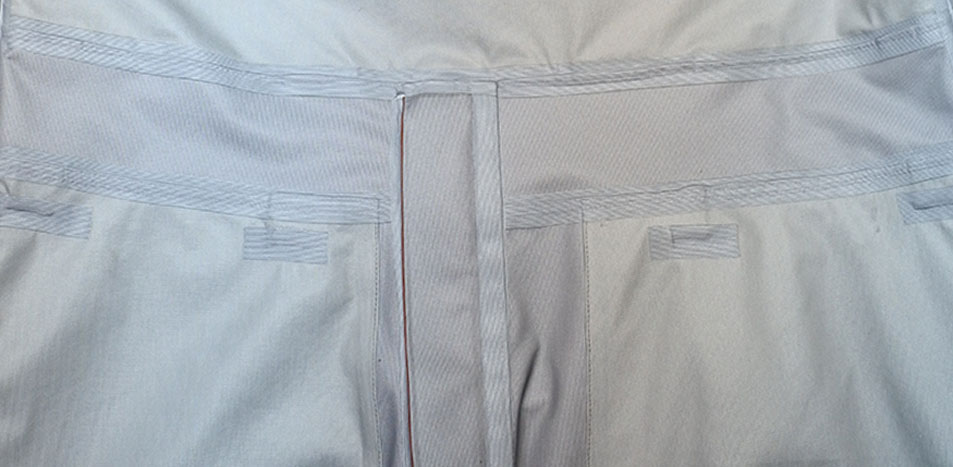

Every stitched seam in a waterproof shell is a line of needle holes. Seam sealing closes them with heat-activated tape applied to the inside of the seam, so the garment performs as one continuous surface rather than a set of panels.
- Seam is sewn

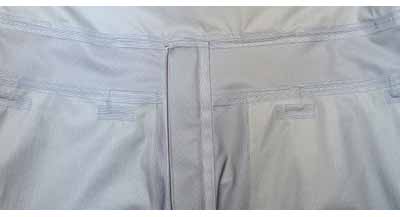

The panel seam is sewn and pressed flat so the tape has an even bed to sit on.
- Tape is applied

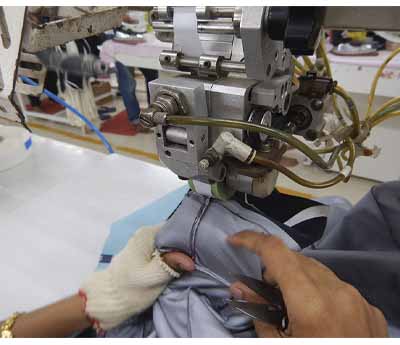

Heat-activated tape is run along the seam under controlled heat and pressure.
- Detail areas are taped

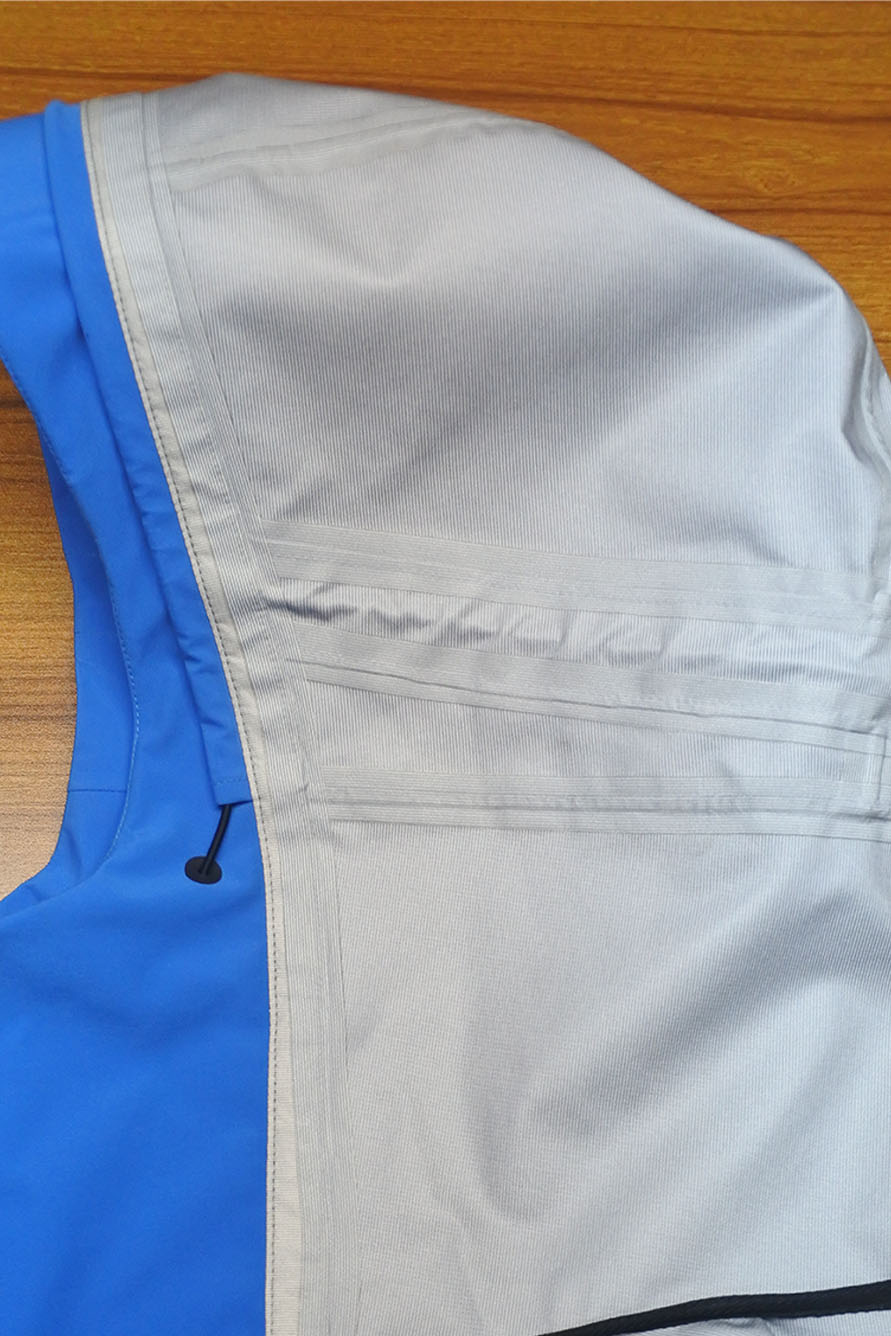

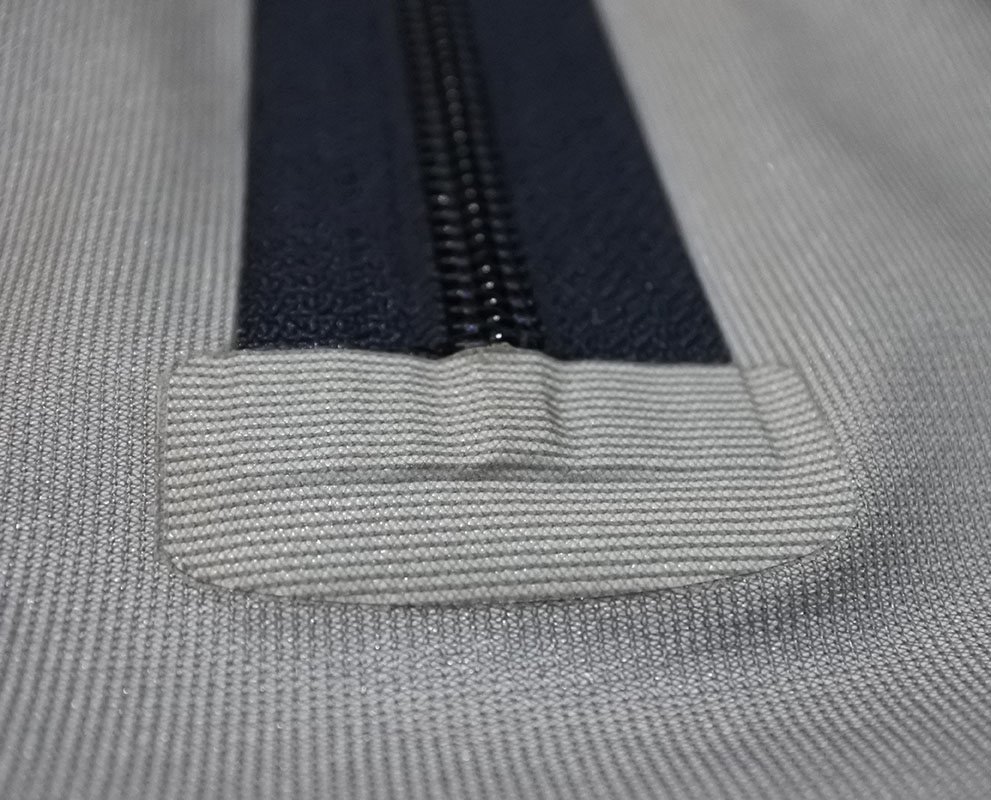

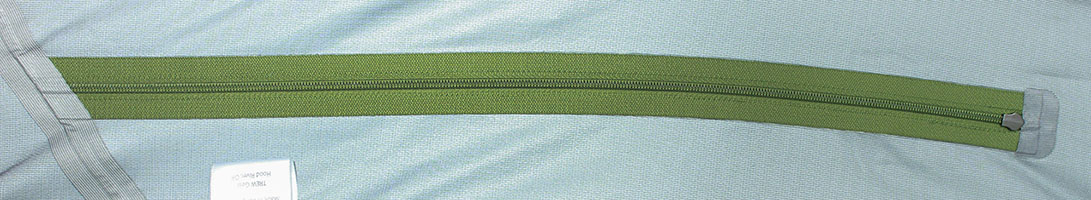

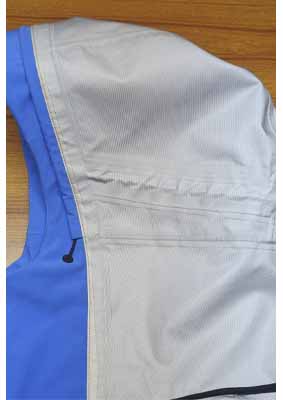

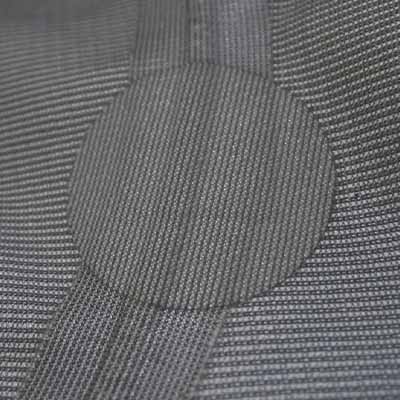

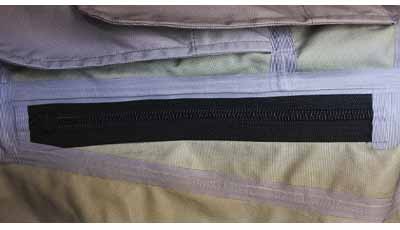

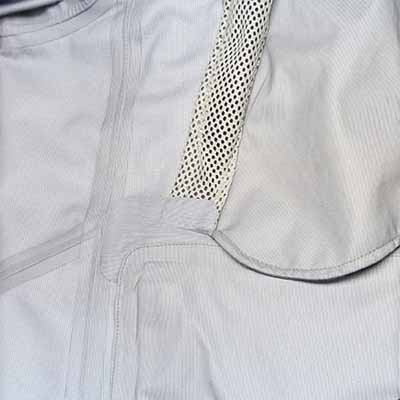

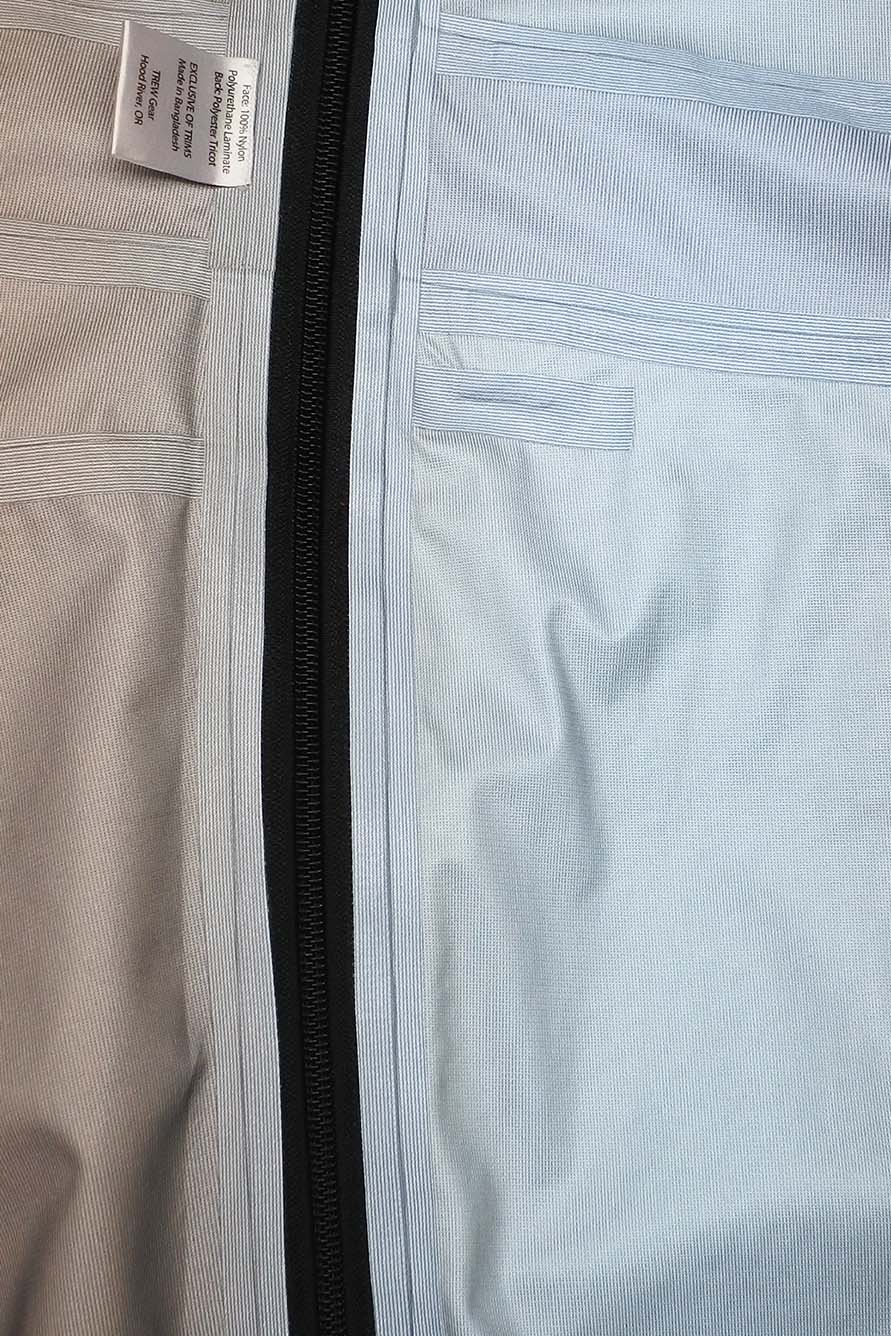

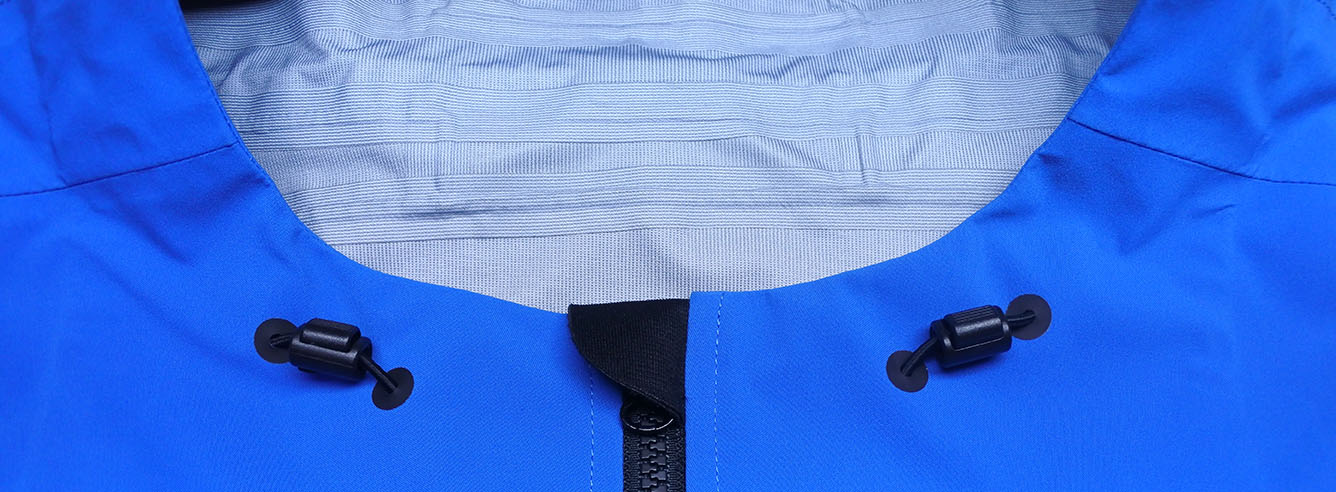

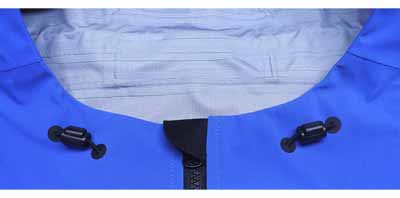

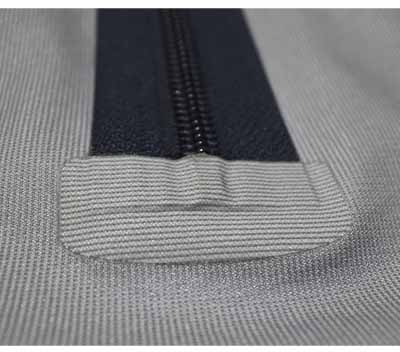

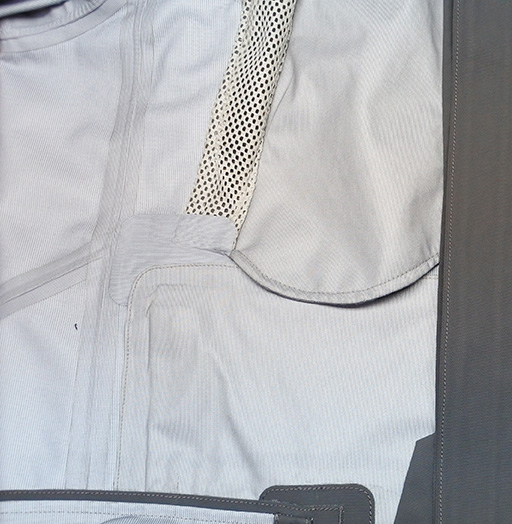

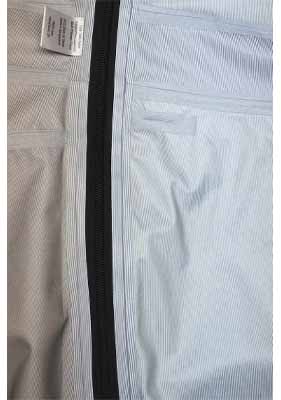

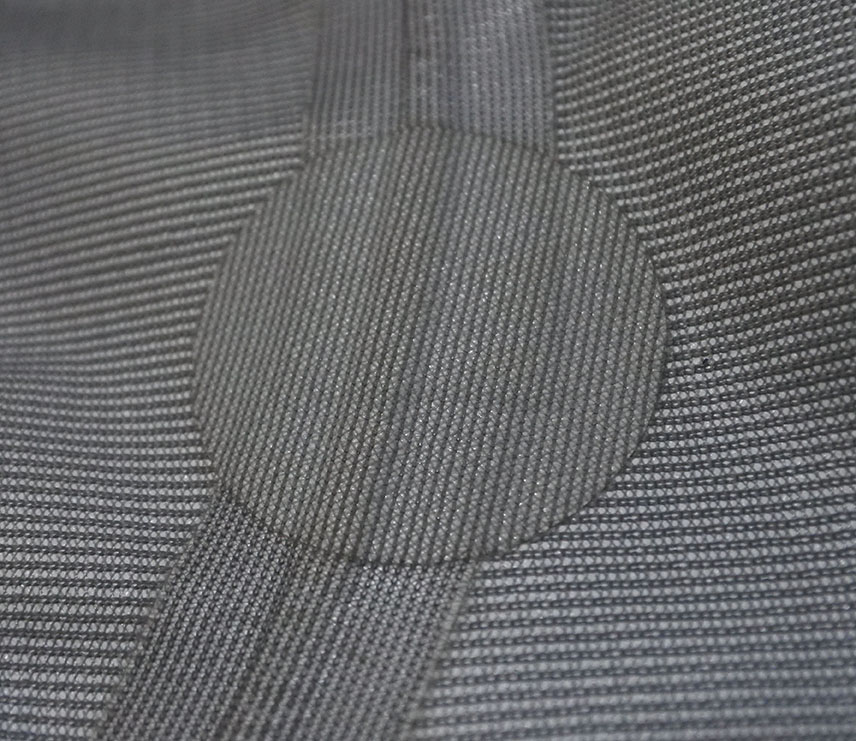

Zipper ends, hood channels and pocket openings are taped separately, with dots where seams cross.
- Checked before wash

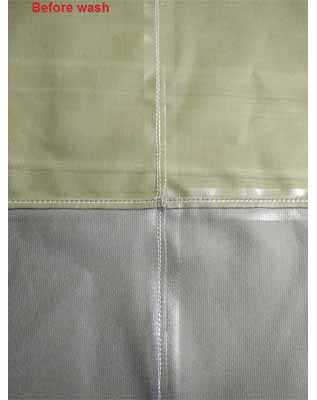

Sealed garments are checked before wash to confirm the tape has bonded across its full width.
Applications

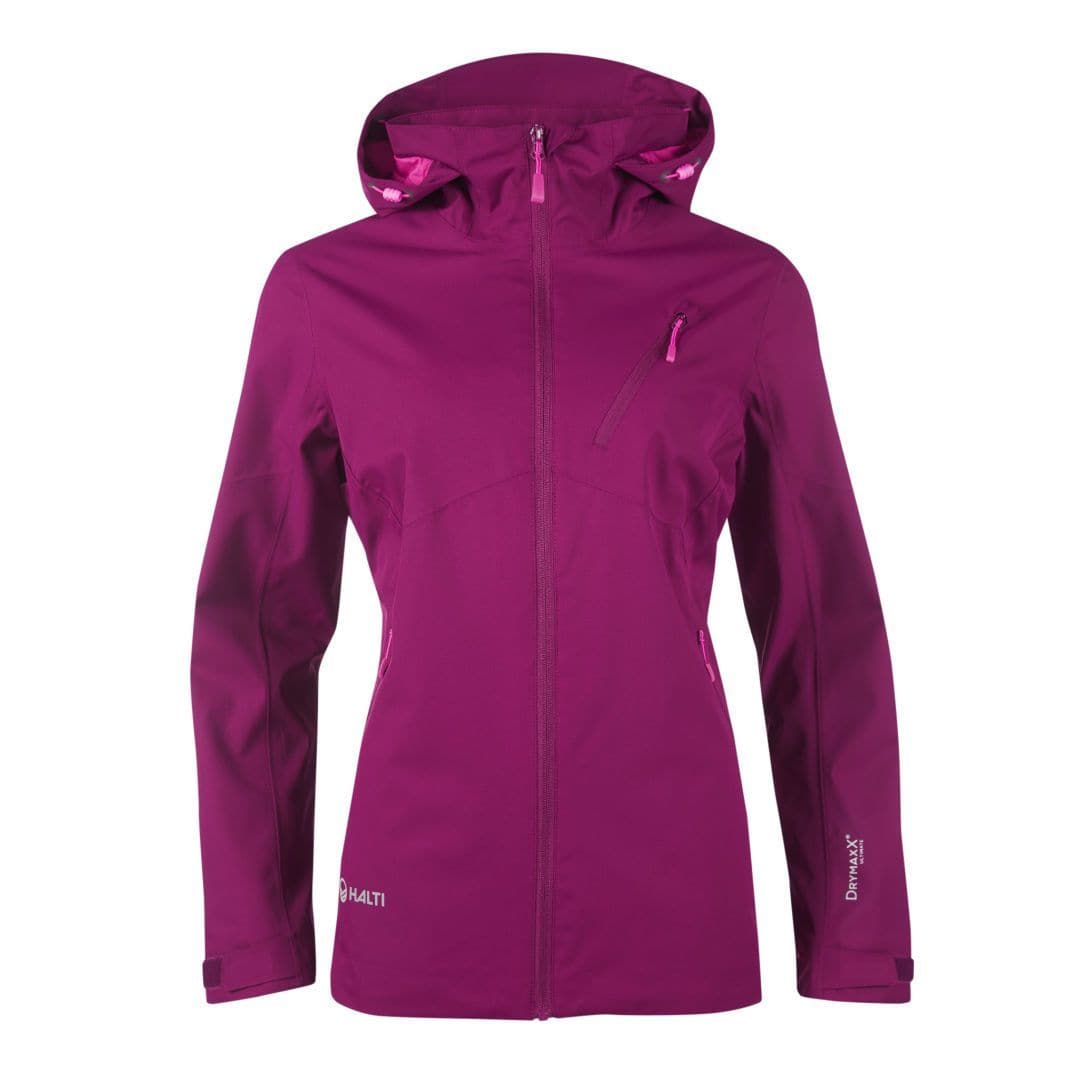

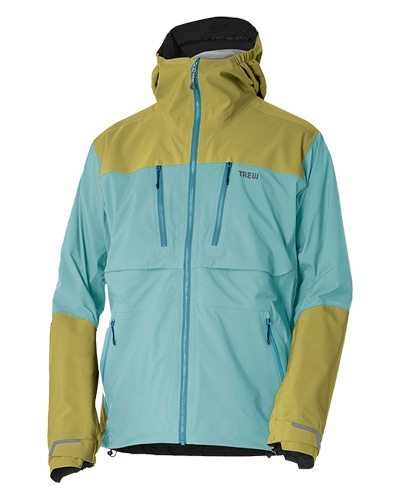

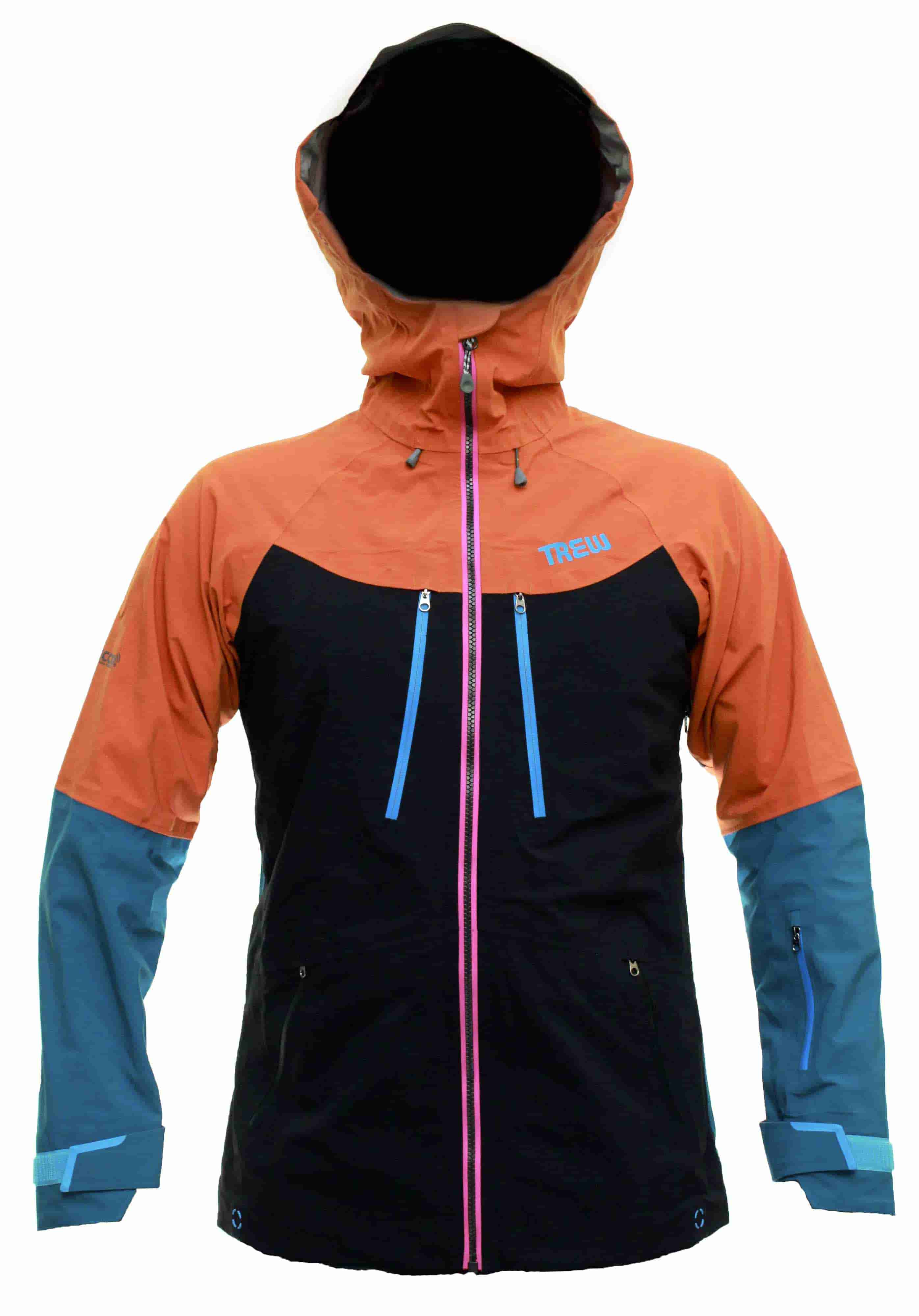

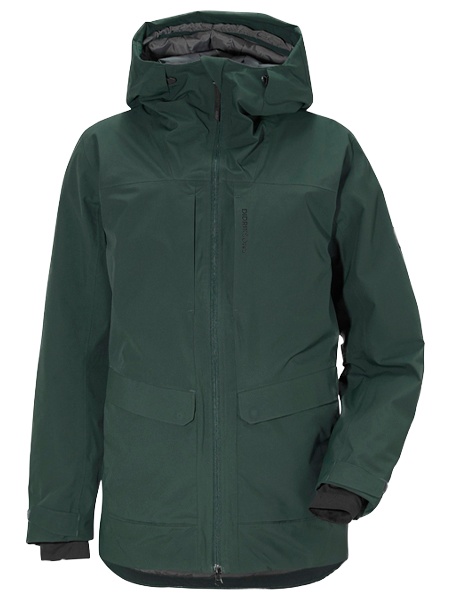

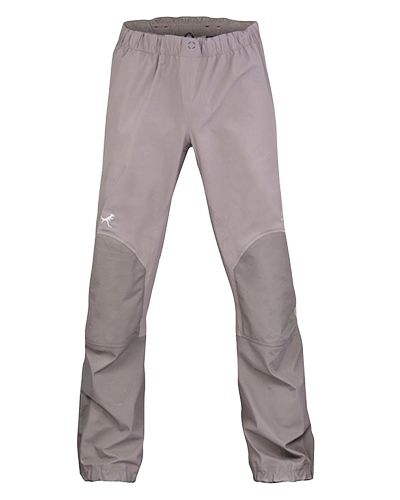

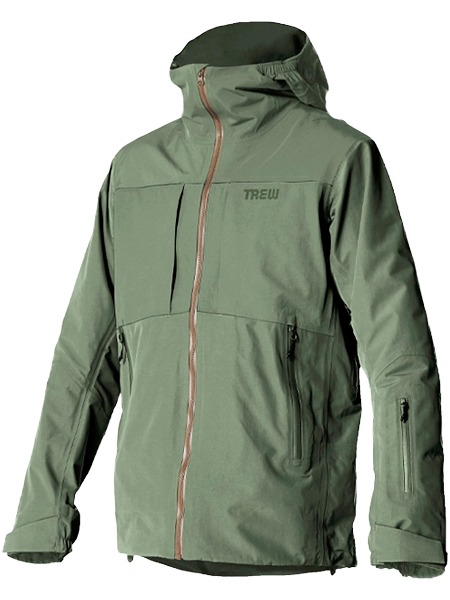

- Waterproof shells and hardshells

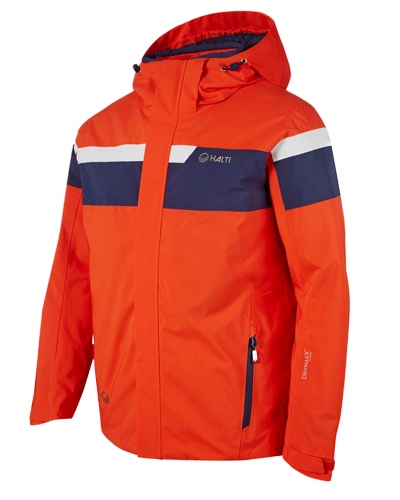

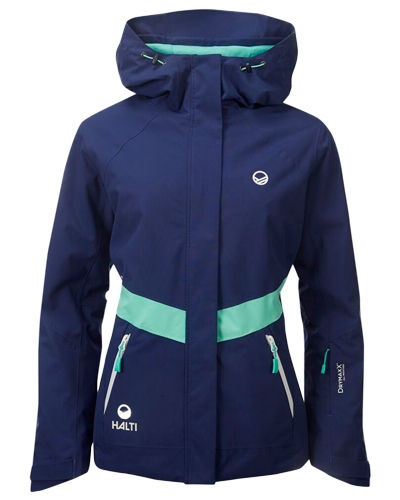

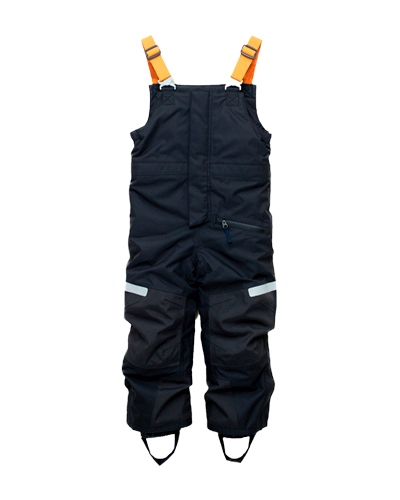

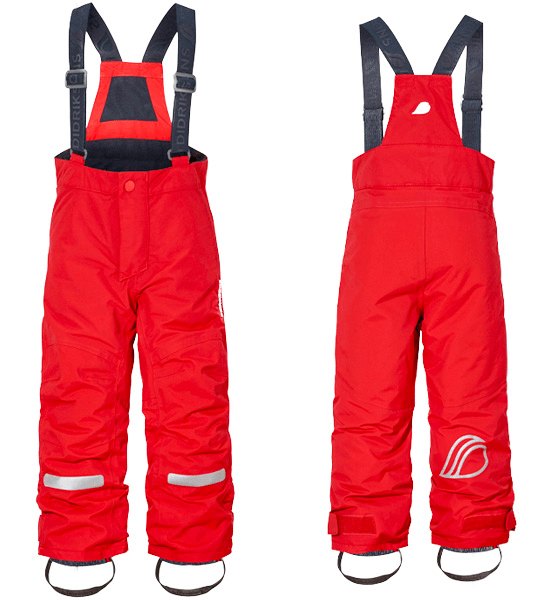

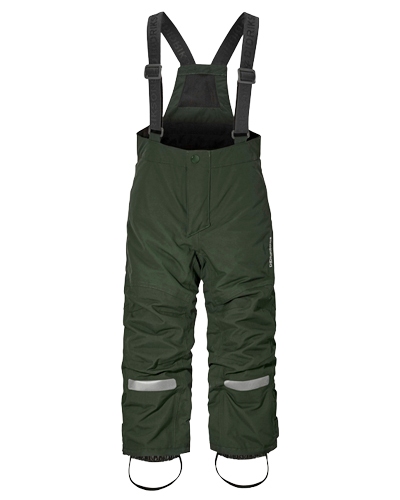

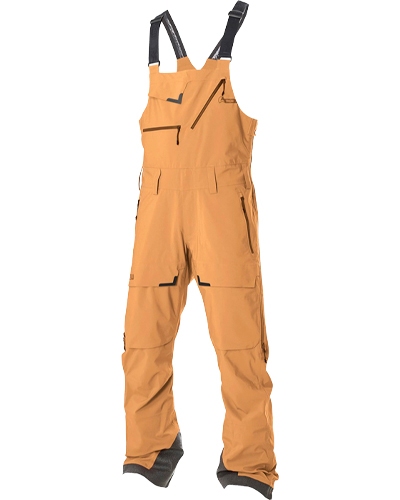

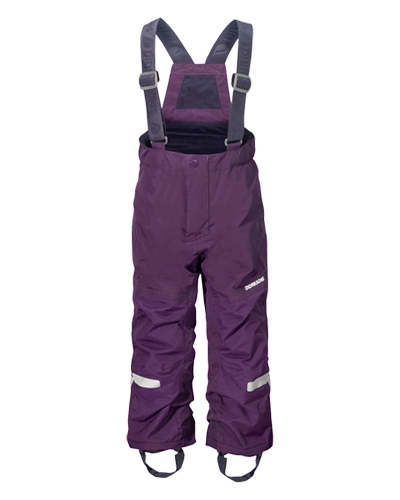

- Ski and snowboard jackets and bibs

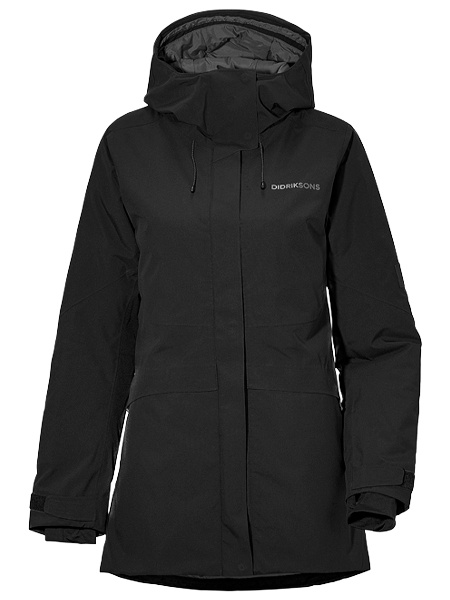

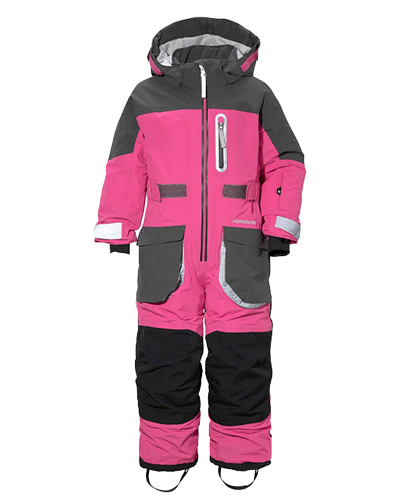

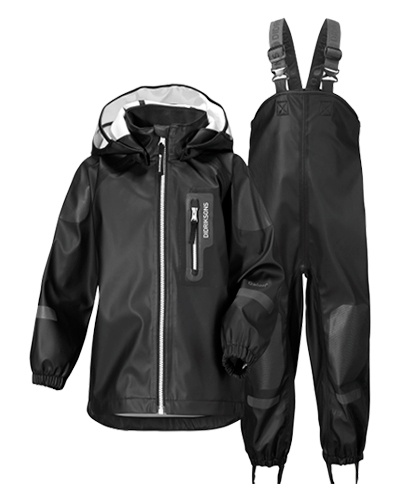

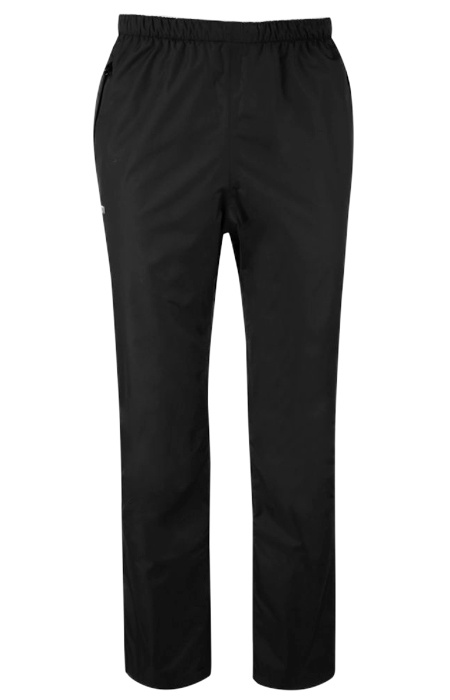

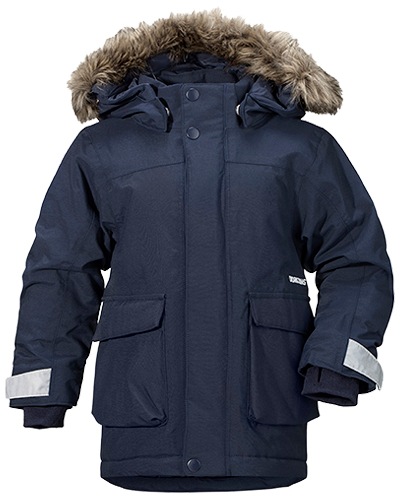

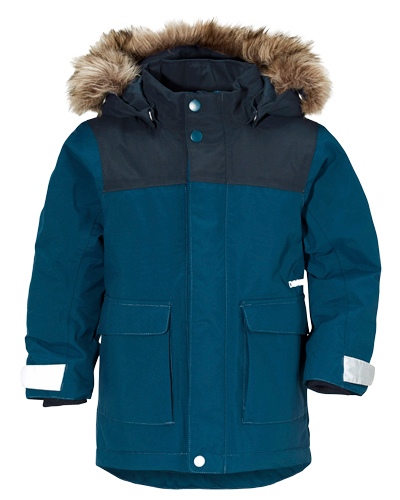

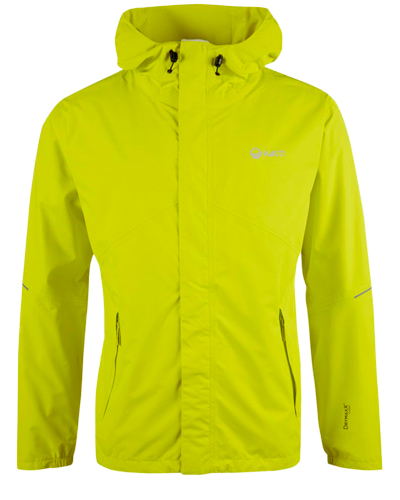

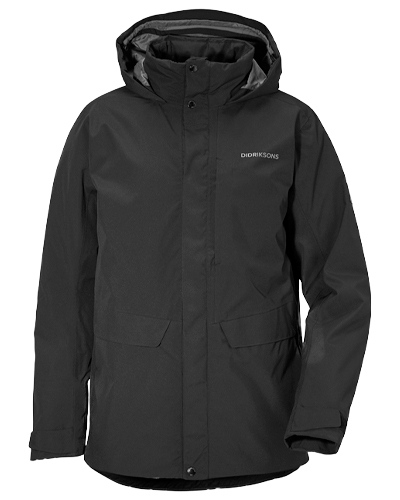

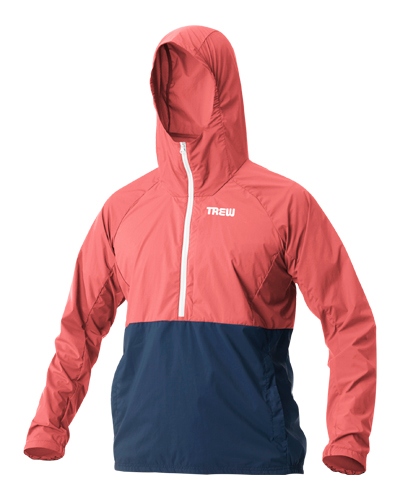

- Rain jackets, parkas and coveralls

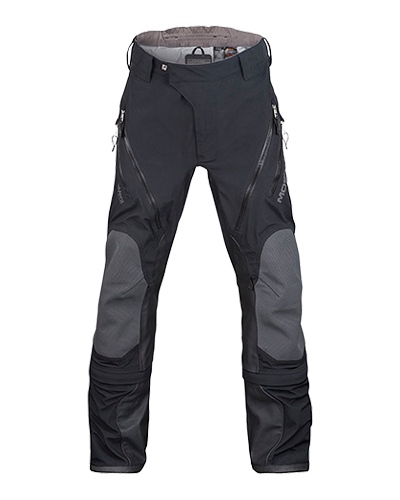

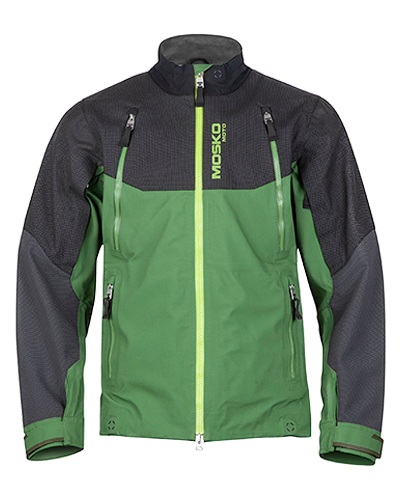

- Hunting and motorcycle outerwear
Advantages
- Closes needle holes across the whole garment

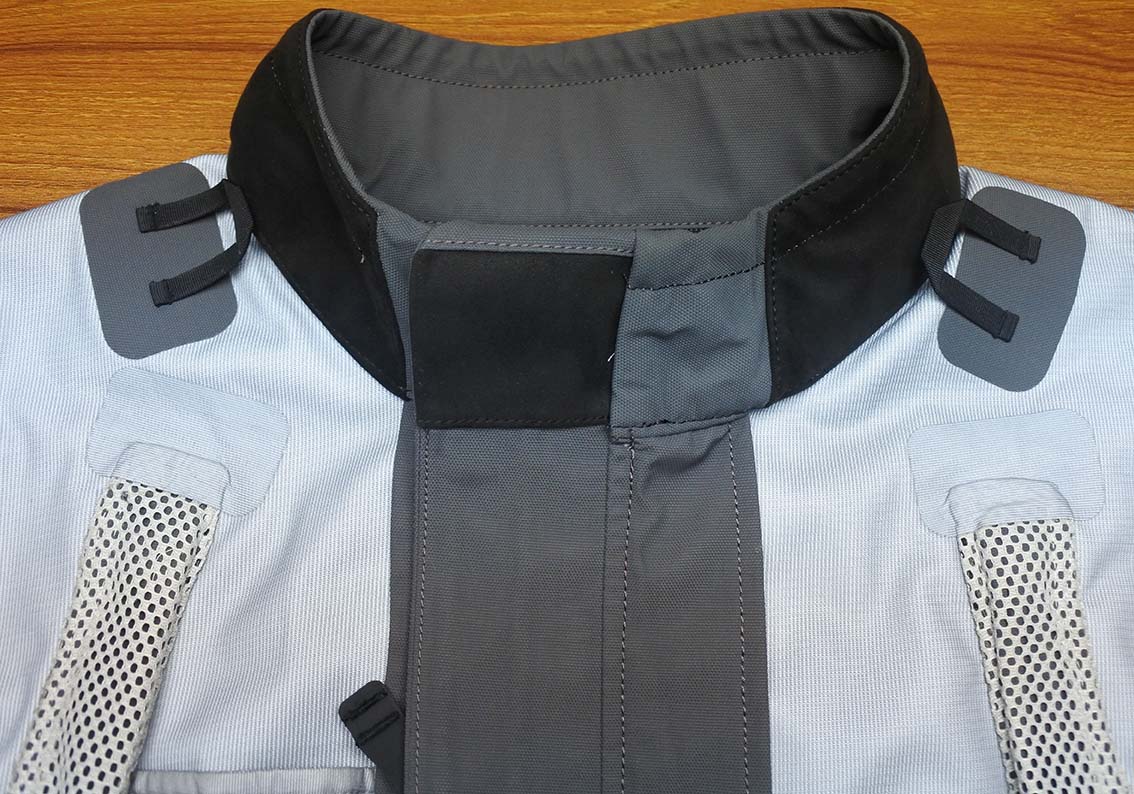

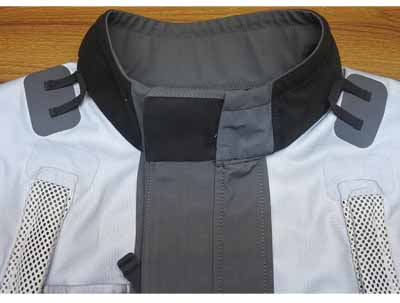

- Taped zipper ends and hood channels, not just body seams

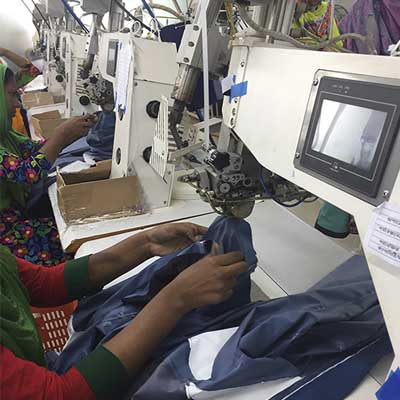

- Consistent application on dedicated equipment
- Checked before wash as part of in-line QC
Process detail
16 IMAGES FROM THE FLOOR
